Güvenlik Rölesi Gelbau 252.06
Güvenlik Rölesi
Safety Relay
Gelbau
Gelbau Güvenlik Rölesi
Gelbau Safety Relay
Gelbau Röle
Gelbau 252
Gelbau 252.06
Gelbau 252.06Z
Gelbau 3002.5206Z
Açıklama

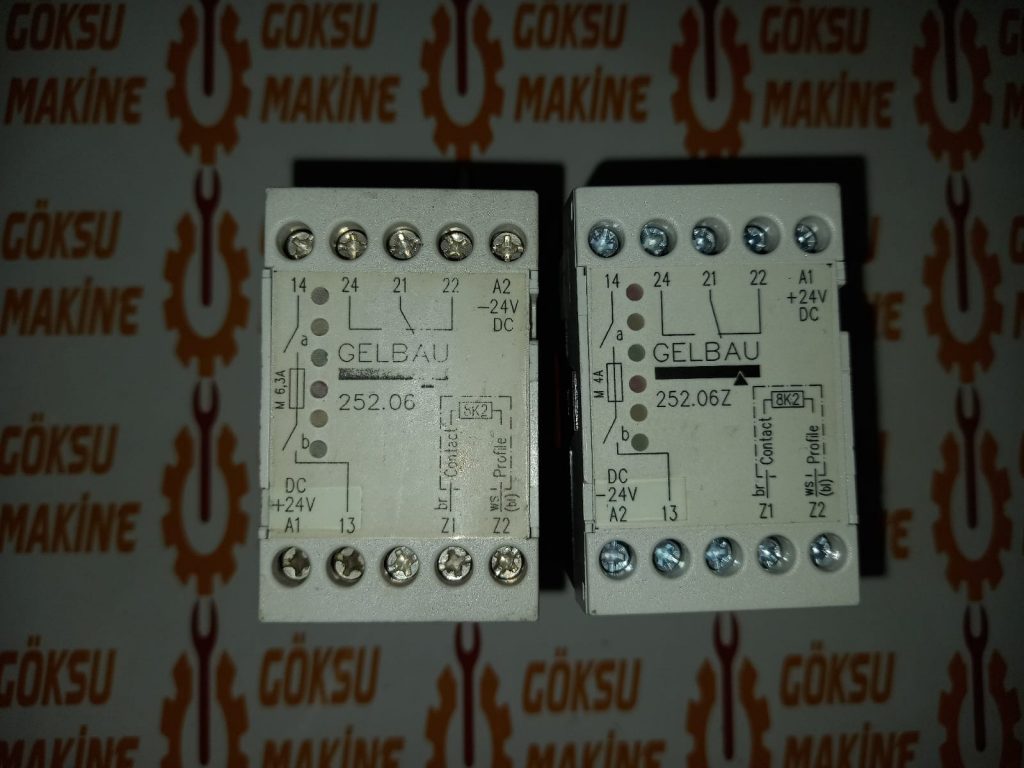

GELBAU 252.06 Güvenlik Rölesi
| Article no. | 3002.5206Z |
| Type | 252.06Z |
| Performance Level according to EN ISO 13849-1:2008 | e / category 3 |
| Safety Integrity Level (SIL) according to EN 62061:2005 | 3 |
| Functions Input | 1 switching strip |
| Functions Output | 1 output with 2 relays each with 1 NC contact in series, forced |
| Additional functions | Changeover contact |
| Supply voltage A1 – A2 | 24 V DC |
| Rated power | 3 VA |
| Power pack potential-isolated | yes |
| Relay contacts 13 – 14; 21 – 24 max. switching voltage AC/DC |
250 V/24 V |
| Relay contacts 13 – 14; 21 – 24 max. switching current AC/DC |
4 A/2 A |
| Perm. operating temperature | –20..+55 °C |
| Housing dimensions (W x H x D) in mm | 45 x 75 x 120 |
| Degree of protection for housing/contacts | IP 40/IP 20 |
