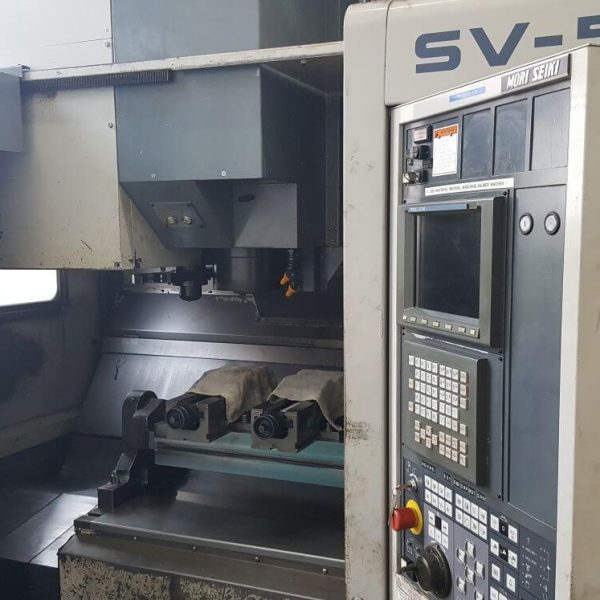

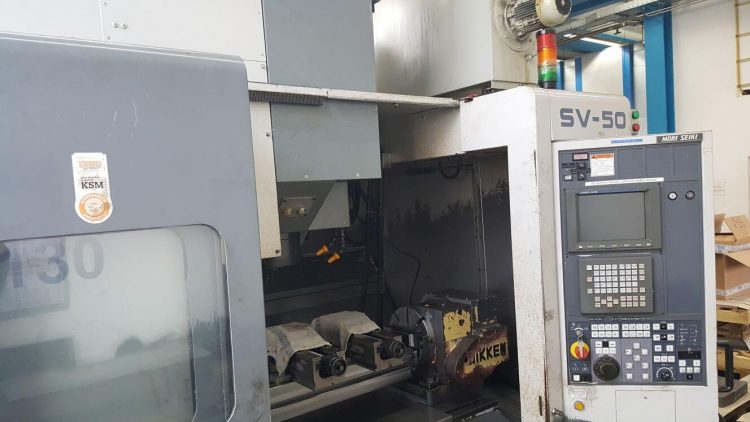

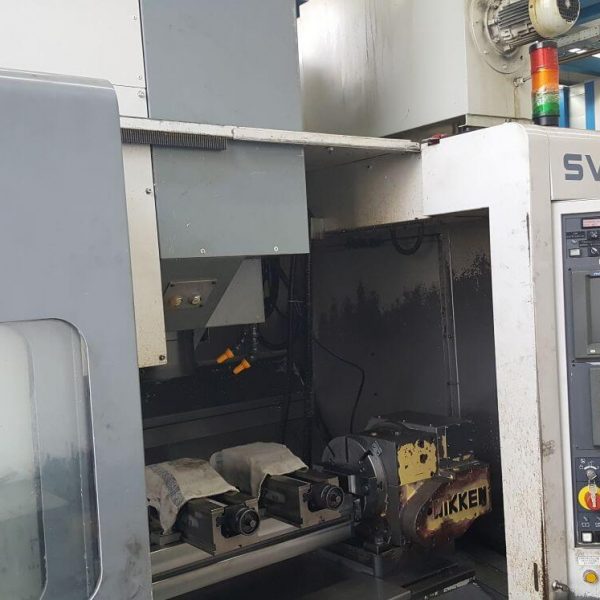

4 Eksen CNC Dik İşleme Merkezi MORI SEIKI SV-50

4 Eksen CNC Dik İşleme Merkezi MORI SEIKI SV-50
4 Axis CNC Vertical Machining Center MORI SEIKI SV-50

ÖZELLİKLERİ

X : 800.1 mm
Y : 510.5 mm
Z : 510.5 mm
Güç : 22.4 kW
RPM (Dönüş Sayısı/Dakika) : 10000 rpm
ATC : 20
Tablo-W : 1,100 mm
Tablo-L : 599.4 mm
Konik : 40
Axis (#Eksen) :4
CNC Kontrol
CNC (MSC 516)
Year 1996
Control MSC 516
Table Size 43.3 X 23.6
Max Table Load 2,640 lbs
Travels (X) 31.5″
Travels (Y) 20.1″
Travels (Z) 20.1″
Rapid Traverse (X,Y,Z) 1,260 IPM
Spindle Taper CAT 40
Spindle Speed 10,000 RPM
Spindle Power 30 HP
Automatic Tool Changer Positions 40 Stations
